3D Printed Crown Orientation: Why Build Angle, Supports, and Margin Protection Matter

Introduction

Chairside 3D printing is becoming more practical for dental practices, but successful crown printing is not only about choosing the right printer or resin. One of the most important decisions happens before the print begins: how the crown is oriented.

Crown orientation, also called build orientation or print angle, affects how the restoration is supported, where support attachments are placed, how resin drains, how the intaglio surface is cleaned, and how much finishing may be needed before delivery. For a crown, those details matter because not every surface has the same clinical tolerance for adjustment.

A support mark on a broad exterior surface may be easy to remove and polish. A similar mark near the margin or inside the crown can create seating, fit, or cleanup concerns. The goal is not to memorize one universal "best" angle. The goal is to understand what the orientation is trying to protect.

What Is Crown Orientation in Dental 3D Printing?

In dental 3D printing, crown orientation is the position of the crown relative to the printer's build platform. It includes the crown's tilt, rotation, and relationship to the print direction. It also influences where the slicer generates supports.

For a full-coverage crown, the most important surfaces include the margin or finish line, the intaglio surface, the occlusal anatomy, the axial walls, and the interproximal contact areas.

Each surface has a different clinical role. The margin affects marginal adaptation and cleanup. The intaglio surface affects seating and internal fit. Contacts affect adjustment time. The occlusal surface affects anatomy, function, and polishability.

A good orientation strategy protects the most clinically sensitive surfaces while still allowing the crown to print reliably.

Why Crown Orientation Matters

A printed crown must do more than survive the print. It needs to seat properly, maintain acceptable marginal adaptation, preserve the intended cement space, and require a reasonable amount of post-processing.

Marginal Adaptation

The crown margin is one of the most sensitive areas of the restoration. If supports are placed too close to the finish line, removing them may damage or alter the margin. Even minor over-finishing near the margin can create variation in the final restoration.

Several studies have shown that build angle can influence the marginal and internal fit of 3D-printed crowns and provisional restorations.^[1,2] In one DLP study of provisional crowns, marginal gap, cervical gap, and occlusal gap differed significantly across build directions.^[2]

That does not mean a specific angle from one study should be applied to every printer and resin. It means orientation deserves clinical attention.

Internal Fit and Seating

The intaglio surface is the internal surface that seats over the prepared tooth. This surface should remain clean, accurate, and free of unnecessary support artifacts whenever possible.

Supports on the intaglio surface can create small high spots. If they are not fully removed, the crown may not seat completely. If they are removed too aggressively, the internal relief or cement space may be altered.

For many workflows, the practical goal is to keep the intaglio and margin support-free unless the material, software, and post-processing protocol have specifically validated another approach.

Balancing Support Placement, Raft Size, and Print Reliability

Supports are necessary in many resin printing workflows, but support location matters. Orientation helps determine which surfaces face downward during printing and where the slicer is likely to place support attachments.

A well-oriented crown gives the software a better opportunity to place supports on manageable exterior surfaces. A poorly oriented crown may force supports into areas that are harder to inspect, harder to finish, or more clinically sensitive.

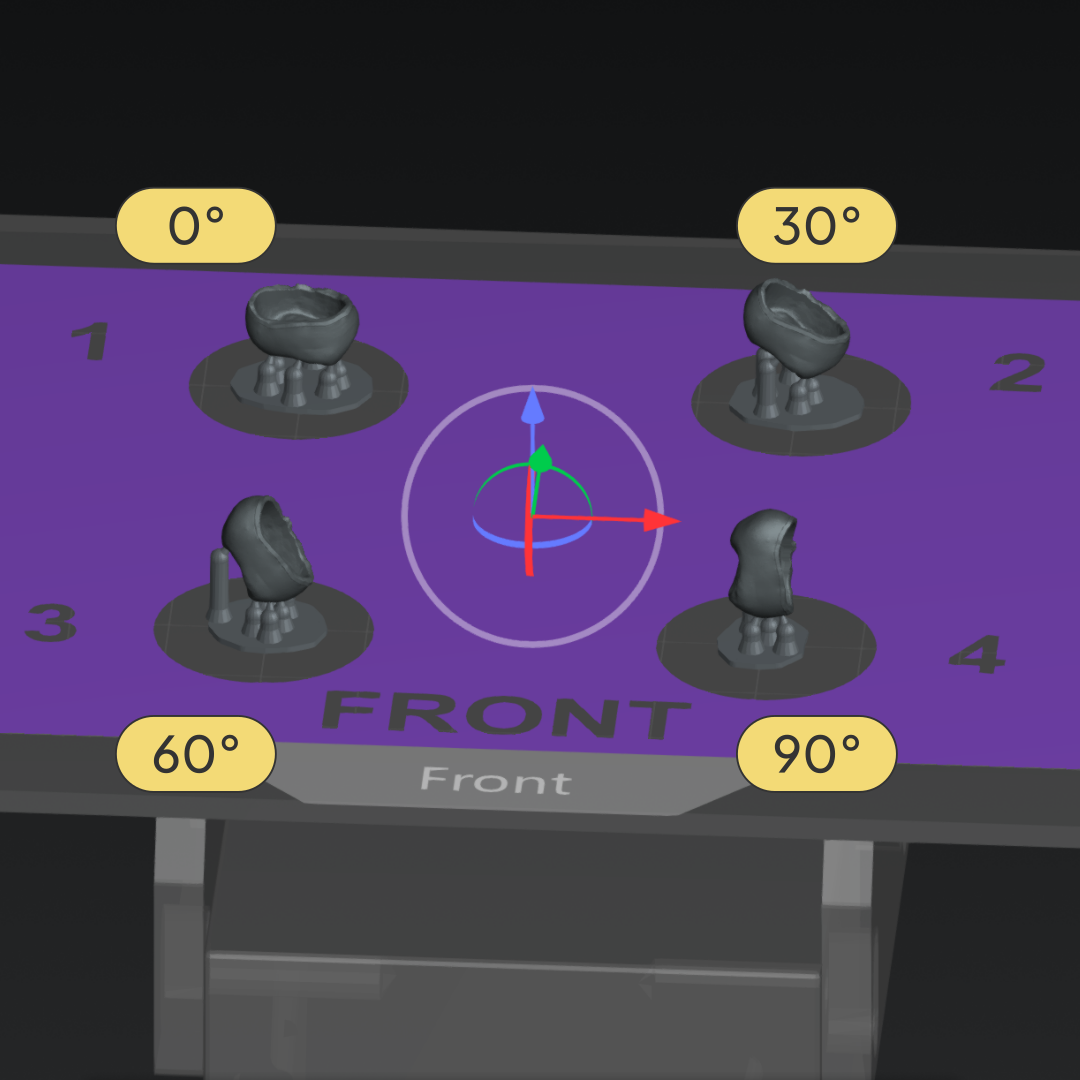

Orientation also affects the amount of support structure required to complete the print. As the crown is tilted more steeply, the projected cross-sectional area facing the build platform often becomes smaller. In many cases, that can reduce the number of support contacts, reduce the size of the raft, and make post-processing easier.

That can be a workflow advantage. Fewer support contacts may mean less time removing supports, fewer support marks to finish, and less risk of accidentally altering a clinically important surface. A smaller raft may also reduce resin use and make the printed part easier to remove from the build platform.

However, there is a tradeoff. If the orientation becomes too aggressive, the crown may not have enough support to resist the forces generated during printing. In vat photopolymerization systems, each layer must separate from the film or vat surface. That peel or release force can stress the raft, supports, and partially printed crown. If the support structure is too small, too sparse, or poorly positioned, the print may fail because of raft separation from the build platform, support breakage, distortion, or delamination during printing.

The goal is to balance post-processing efficiency with reliable printing. A crown should be oriented to avoid unnecessary support contacts near the margin, intaglio, and contact areas, but it still needs enough support structure to print consistently.

A setup that looks clean in the slicer but fails during printing is not a better workflow. Likewise, a setup that prints reliably but requires excessive finishing may not be practical chairside.

There Is No Universal Best Crown Print Angle

One of the most common questions in dental 3D printing is: "What angle should I print crowns at?"

It is a reasonable question, but the answer is not one number.

Research has shown that build angle can affect dimensional accuracy, marginal fit, internal fit, support area, surface quality, print time, and material use.^[1-4] However, the best-performing angle varies across studies.

That variation makes sense. A crown printed in one resin on one DLP printer may not behave the same as a crown printed in another material, at another layer thickness, on another system. A molar crown may require a different strategy than a premolar, anterior crown, onlay, or partial coverage restoration.

Even the way a study defines and measures accuracy can change the result. Some studies focus on marginal gap. Others evaluate internal fit, root mean square deviation, surface quality, or support-related distortion.

So instead of asking, "What is the perfect angle?" a better clinical question is:

Does this orientation protect the margin and intaglio, allow reliable support placement, support proper drainage and cleaning, and match the validated workflow for this printer and material?

That question leads to a better decision.

Which Crown Surfaces Should Be Protected?

When reviewing crown orientation, it helps to think in terms of surface priority.

Table 1: Crown surface priorities during orientation review.

Crown Area	Why It Matters	Orientation Goal
Margin / finish line	Critical for seating, cleanup, and marginal adaptation	Avoid supports and aggressive finishing
Intaglio surface	Controls internal fit, cement space, and seating	Keep clean and support-free when possible
Interproximal contacts	Affect contact adjustment and clinical fit	Avoid support marks in contact-critical areas
Occlusal surface	Affects anatomy, function, and polishability	Preserve anatomy; use controlled cleanup only if appropriate
Axial exterior surfaces	Often easier to inspect and polish	Better candidates for controlled support placement

This does not mean supports can never touch certain surfaces. It means the clinical risk is not equal across the crown.

A small support mark on an accessible exterior wall may be manageable. A support artifact on the intaglio surface or near the margin may have a greater effect on seating and adjustment.

Why Crown Geometry Makes Orientation Difficult

Crown orientation sounds simple until real crown files are involved.

A crown STL may not arrive in a predictable position. Depending on the design software and export settings, the crown may be tilted, rotated, inverted, or placed arbitrarily in space.

Crowns are also not simple geometric shapes. A molar crown may be wider mesiodistally or buccolingually than it is tall. That means a basic software rule like "use the longest axis" may not correctly identify the occlusal-cervical direction.

Short clinical crowns, onlays, and partial coverage restorations can be even more difficult because the margin, intaglio, and occlusal anatomy may not form a simple, obvious shape.

That is why crown orientation is more than a 3D printing problem. It is a dental anatomy problem.

Protect, Support, Drain, Repeat

A simple way to evaluate crown orientation is:

Protect. Support. Drain. Repeat.

Protect

Start by protecting the margin, intaglio surface, and contact-critical areas. These surfaces are directly related to seating, adaptation, and adjustment time.

Support

Make sure the crown is supported well enough to print reliably. Under-supporting can lead to failure, distortion, or detachment. Over-supporting can increase cleanup and surface damage.

The goal is not simply more supports. The goal is appropriate supports in appropriate locations.

Drain

Consider whether resin can drain and whether the intaglio surface can be washed and inspected effectively. Poor drainage can make cleaning less predictable, especially in small internal features.

Repeat

Ask whether the workflow can be repeated by the team. A good orientation strategy should be understandable, reviewable, and consistent from case to case.

Manual Orientation vs. Automated Orientation

Manual orientation can work well when the user understands the printer, resin, software, and clinical goals. Many experienced dental 3D printing users develop reliable habits over time.

The challenge is variation. In a busy practice, different team members may prepare files. One person may carefully review margin protection and support locations. Another may rely more heavily on default slicer settings.

Automated orientation can help, but only if it is clinically aware. Good automation should do more than apply a fixed angle to every crown. It should help identify the occlusal-cervical direction, recognize the intaglio side, protect no-support zones, and place the crown in a position that is easier to support, clean, and review.

The clinician should remain in control. The software should reduce avoidable variation.

What to Check Before Printing a Crown

Before printing, take a brief orientation review:

• Are supports kept away from the margin?
• Is the intaglio surface protected?
• Are support contacts located on surfaces that can be cleaned and polished predictably?
• Can resin drain from the internal surface?
• Does the setup follow the resin and printer manufacturer's validated instructions?
• Would another trained team member understand why the crown is oriented this way?

This review does not need to take long. A clear orientation strategy should make the review faster because the team knows what to look for.

Where OCTOpod Fits

OCTOpod was developed around the broader workflow challenges that can make chairside crown printing feel difficult: resin handling, material changes, cleanup, waste, and small-batch restorative printing.

Crown orientation still matters. Printer settings still matter. Resin instructions still matter. Clinical review still matters.

But when the surrounding workflow is cleaner and easier to manage, the team can focus more attention on the restoration itself instead of fighting the process around it.

Key Takeaways

Crown orientation is one of the most important setup steps in dental 3D printing.

The best orientation is not simply the angle that prints successfully. It is the orientation that protects the margin and intaglio surface, places supports in manageable locations, supports resin drainage and cleaning, and fits the validated workflow for the material and printer being used.

There is no universal crown angle that applies to every restoration, resin, and printer. For dental teams, the goal is to use a workflow that is consistent, reviewable, and clinically sensible.
